Fusion Collapsible Contact & Dragon Fire Staff Kit

From $299

  • Heaviest model of dragon staff
  • 4″ end wicks
  • Add all options to see final price
Handle Material / Grip
Length / Grip (Choose same grip)
Hubs
Fire Spokes
Qty:-+
Collapsible Staff Bag

If you’re looking for the most fire possible with your dragon staff setup, then you’ve come to the right place.

We’re only offering this in the longest Fusion length (1700mm) because 8″ of the staff is the contact staff wicks and you’ll want at least 2-3″ past the wick to put the V3 hubs. The usable grip area is GREATLY reduced if you go any shorter than that.

With this setup, you can switch between having a regular contact staff and having an 8 or 10 spoke dragon staff (3-4 spokes per hub plus contact wicks).

Be warned though, this is the heaviest dragon staff iteration that is offered by Threeworlds. That being said, it’s the most visually appealing in most performing scenarios.

Additional Info

Staff Specs

  • Total Length: 1700mm

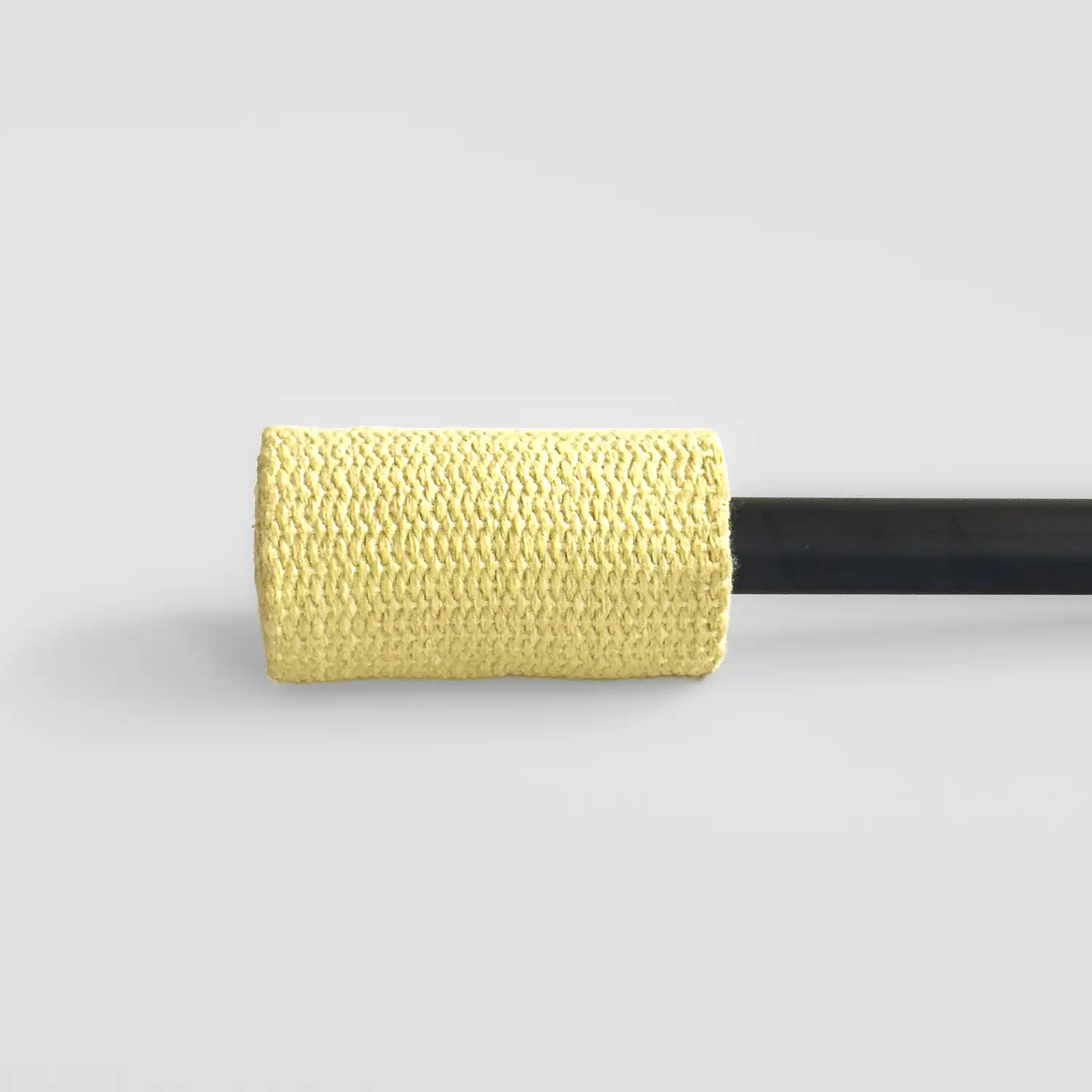

  • Contact Staff Wicks: 4″
  • Aluminum 7075 Core

Hub Specs

  • V3 Fusion Hubs
  • Fit 6 or 8 spokes per hub
  • Precision Engineered Aluminum 7075
  • 3mm Allen Key to remove spokes and hub

Spoke Specs

  • 7″ Length
  • 2″ Wicks
  • Durable/pliable Steel Cable Construction

Variations

Material

  • Aluminum 7075: This aluminum is the strongest aluminum alloy commercially available. It’s slightly heavier than carbon fiber and more budget friendly.
  • Carbon Fiber: Carbon fiber’s high strength-to-weight ratio makes it ideal for lightweight, high-performance parts. Lighter than the Aluminum 7075 handle.

Grip

  • Silicone: a continuous tubing made of high-temperature resistant silicone rubber. This particular tubing is air textured to make it more grippy compared to other silicone tubings. This also helps to reduce loss of traction in moist conditions. It is one of the tackiest and longest lasting grip. Silicone is grippiest when clean and dry. Depending on the environment and person, occasional wipe downs to remove any moisture may be required. It is easier to clean compared to EPDM because you can spray it with water or rubbing alcohol and wipe down.
  • EPDM: a synthetic black rubber grip that is durable, grippy, and padded. In comparison to silicone, it is better at retaining grip in moist conditions and is slightly lighter. This makes it more suitable for consistently sweaty, humid, or dusty conditions. EPDM becomes more grippy with use and ages like a fine wine. It has a slight tendency to leave black residue on skin which can be cleaned with soap and water. This grip is better for those who don’t want to regularly clean their grip. If it does get dirty enough to be problematic, you can use a slightly moist towel to gently wipe down the grip. Do not spray down like silicone tubing.

Length

Staff length should be about chin length. For a majority of people 1500mm (59″) sits at about chin length and is the most popular size. Refer to our blog How to Choose the Perfect Staff Length.

Specs

Add weights of 2 x hubs, number of spokes, and chosen fire contact staff base to calculate total weight.

V3 Hub

  • Precision Engineered 7075 Aluminum
  • Fits any 22mm (~7/8″) (OD) tube
  • Designed to fit 3 or 4 spokes per hub
  • Remove by unscrewing only one screw per hub
  • Needs Fusion end caps to protect tubing where hub clamps on
  • Single Hub Weight: 99g (0.22 lb)

Fire Spoke Dimensions

  • Weight: ~90g  (~0.2lb)
  • Wick Width: 50mm (2″)
  • Overall Length: 180mm (7″)
  • Slight variations in spoke weight dependent on stocked kevlar

Contact Staff Base

Aluminum Handle with EPDM Grip (240g)

  • 550mm Ends (EPDM: 2 x 283g): Total Weight: 806g (1.78 lbs)
  • 600mm Ends (EPDM: 2 x 303g): Total Weight: 846g (1.86 lbs)
  • 650mm Ends (EPDM: 2 x 318g): Total Weight: 876g (1.93 lbs)

Aluminum Handle with Silicone Grip (258g)

  • 550mm Ends (Silicone: 2 x 299g): Total Weight: 856g (1.89 lbs)
  • 600mm Ends (Silicone: 2 x 319g): Total Weight: 896g (1.98 lbs)
  • 650mm Ends (Silicone: 2 x 332g): Total Weight: 922g (2.03 lbs)

Carbon Fiber Handle with EPDM Grip (190g)

  • 550mm Ends (EPDM: 2 x 283g): Total Weight: 756g (1.67 lbs)
  • 600mm Ends (EPDM: 2 x 303g): Total Weight: 796g (1.75 lbs)
  • 650mm Ends (EPDM: 2 x 318g): Total Weight: 826g (1.82 lbs)

Carbon Fiber Handle with Silicone Grip (210g)

  • 550mm Ends (Silicone: 2 x 299g): Total Weight: 808g (1.78 lbs)
  • 600mm Ends (Silicone: 2 x 319g): Total Weight: 848g (1.87 lbs)
  • 650mm Ends (Silicone: 2 x 332g): Total Weight: 874g (1.93 lbs)

Fire contact staff weight fluctuates minutely depending on stock of kevlar used during production, allow for minor discrepancies as these are also handmade.
